TEST-630 SIX PHASE MICROCOMPUTER PROTECTION RELAY TESTER

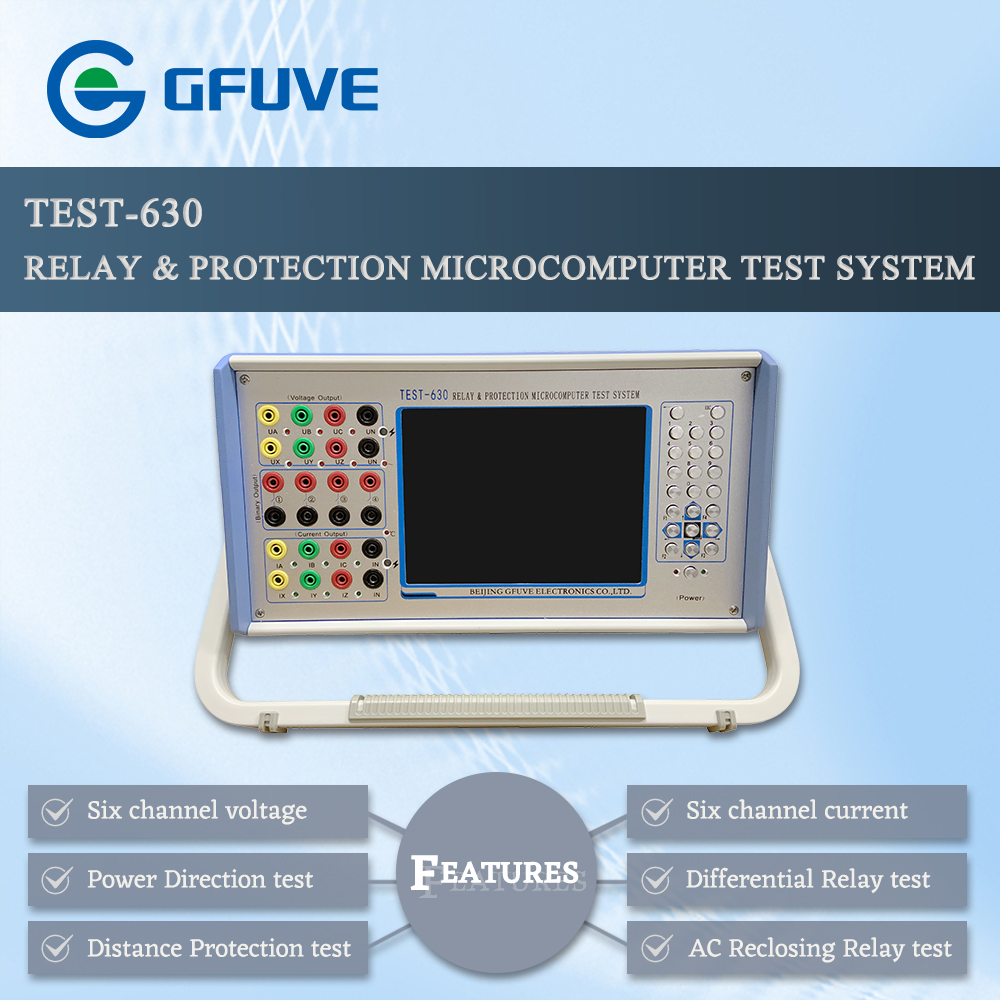

TEST-630 protection relay tester is a relay test equipment which offers all the characteristics and functions needed for protective relay testing, in a manual or automatic mode, designed for using on site or in the laboratory.

TEST-630 relay test kit is a the most advanced six-phase relay test set available for type and field testing of electromechanical and digital protections of any kinds of relay. It have six phase current output and six phase voltage output, with eight pairs of binary input and four pairs of binary output, wide frequency output from 0 to 1050Hz, high precision and high stability. It is a ideal test tool for substation commission, acceptance testing and maintenance testing in smart grid.

TEST ITEM

■ U/I test

■ DC test

■ I-T test

■ Special test

■ Harmonic test

■ State sequence

■ Fault Recurrence

■ Oscillation test

■ Hardware checkout

■ Differential relay

■ Setting group test

■ Metering instrument

■ Distance protection

■ Synchronization test

■ Power direction test

■ Frequency Protection

■ Low Voltage protection

■ Differential protection

■ Zero sequence protection

■ Impedance characteristics

APPLICATION

■ Power plant;

■ Universities;

■ Research institutes;

■ panel manufacturer;

■ Electrical laboratory;

■ Relay manufacturers;

■ Electrical testing center;

■ Electricity power bureau & power company;

■ Power engineering commissioning company;

■ Electrical Department of industrial and mining enterprises;

FEATURES

■ With PC control software optional;

■ Auto test and manual test optional;

■ COMTRADE recording file fault recurrence wave;

■ Eight pairs of binary input, Four pairs of binary output;

■ Six-channel current output, Six-channel voltage output;

■ High precision and good unique linearity of power amplifier;

■ The test report can be easily derived from the USB port to print;

■ Integration in 8 inches TFT color LCD, light weight and easy to carry;

■ Panel embedded user-friendly buttons, and external keyboard and mouse;

■ High-precision DAC to 12 channel, simultaneously voltage and current output;

■ The newly designed software interface is fully consistent with the host machine operation;

■ Overcurrent, overvoltage, overload, short circuit and over-high temperature intelligent self-protection;

■ It can easily complete the protective device test of ABB, Siemens, Schneider, AREVA and other manufacturers;

■ Built-in high-speed and high-performance industrial computer embedded operating system, running stable and reliable, also can test;

■ Extensive testing capabilities: state sequence, IT features analog oscillation,setting group of test, differential protection test, harmonic test, distance protection test, fault playback, special tests etc.
